HEXAWORM

Completed on December 8, 2023.

View live at Shadertoy

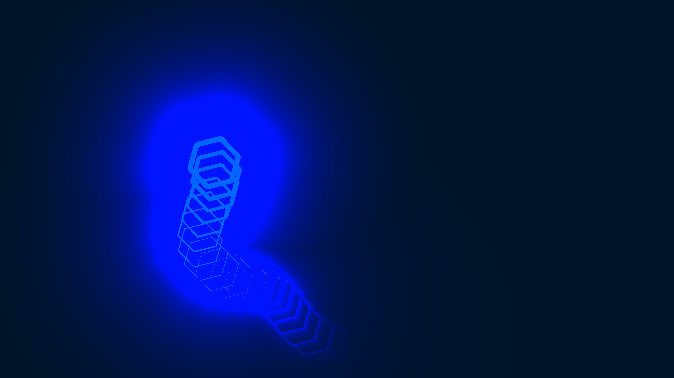

A nice little HEXAWORM swimming in a circle. Look at it go! Looks like it's from an alien planet, or perhaps it's like those pictures of viruses very close up. My inaugural non-hello-world glsl project.

Source code

// thanks inigo
// https://iquilezles.org/articles/distfunctions2d/
float sdHexagon( in vec2 p, in float r )
{
    const vec3 k = vec3(-0.866025404,0.5,0.577350269);
    p = abs(p);
    p -= 2.0*min(dot(k.xy,p),0.0)*k.xy;
    p -= vec2(clamp(p.x, -k.z*r, k.z*r), r);
    return length(p)*sign(p.y);
}

void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
    // Normalized pixel coordinates (from 0 to 1)
    vec2 uv = fragCoord/iResolution.xy;

    vec2 st = (2. * uv - 1.) * vec2(iResolution.x / iResolution.y, 1.);

    // To mess with the signed distance function to make it glow
    float shine = 0.4 + 0.1 * pow(sin(0.600*iTime),2.);

    // To spin in place
    float a = .19 * iTime;
    mat2 post_rotation = mat2(-cos(a), sin(a),
                        sin(a) ,    cos(a));

    // Dist needs to be initialized outisde of for loop for scope
    // because we are composing multiple signed distance functions.
    float dist = 1.;
    // Make a bunch of hexagons:
    for (float i = 0.; i < 2.; i+=.1) { // TODO: make the loop conditions parameterized

        // To orbit center
        float b = i + iTime * 0.5;
        mat2 pre_rotation = mat2(-cos(b), sin(b),
                            sin(b) ,    cos(b));

        // Find the center of the hexagon:
        // Rotate about origin, offset, and change that offset depending on
        // the time and where you are in the worm, for that sweet undulating motion.
        vec2 p = st + vec2(.5 + 0.05 * sin(6. * i + iTime * 5.)) * pre_rotation;

        // Calculate the distance function for this hexagon.
        // The distance function is then taken to the shine'th power
        // (with a few tweaks for where you are in the worm).
        // This ends up giving the outline, but only if we use the magnitude of the
        // distance function as a threshold instead of the actual sign. (See below.)
        float segment_dist =  pow(sdHexagon(p * post_rotation, .1), 0.8 * i * shine);

        // Take the minimum of the current distance function and the old one to
        // compose the shapes.
        // Helpful link: https://numfactory.upc.edu/web/Geometria/signedDistances.html
        dist = min(dist,segment_dist);
    }

    // Decide on the g component depending on a hard threshold on the distance function.
    // This gives the crisp cyan of the hexagons.

    // If the condition on dist was dist == 0, nothing would show up.
    // Not sure entirely why! Do you know?
    float g;
    if (dist < 0.1) {
        g = 1.;
    } else {
        g = 0.2;
    }

    // The b component instead depends on 1/dist, which gives the snazzy dark blue glow.
    float b = pow(0.4 / dist, 2.);

    // Output to screen
    fragColor = vec4(
        .0, g * 0.4 , b,1.
    );

}
